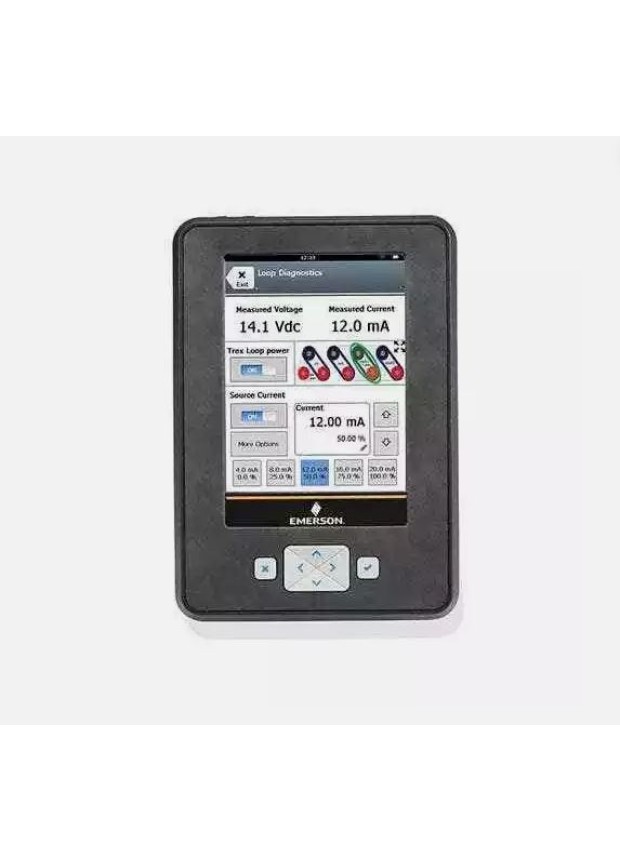

Emerson TREXLHPKLWS3S Trex Communicator

The merson TREXLHPKLWS3S Trex Device Communicator, HART Application, Communicator Plus, Certified, Wireless Capability, 3 Years Standard Support, Case is designed to withstand the harsh conditions in and around manufacturing facilities and is safely-rated. Designed for comfortable, one-handed, all-day operation in the field, the TREXLHPKLWS3S is packaged in an evenly-balanced form factor with a rugged hand strap. It comes standard with 32 GB of application memory, providing plenty of space to customize it with apps. With built-in USB and WiFi connectivity, users can move data to and from the communicator using the connectivity option that is most convenient. The communicator’s robust lithium-ion power module will keep it running for hours, well over a full shift, even when it is being used to power other devices in the field.The TREXLHPKLWS3S is designed to operate with a wide range of HART devices independent of device manufacturer. Device interoperability is achieved through the Electronic Device Description Language (EDDL) technology supported by the HART Communication Foundation. The TREXLHPKLWS3S includes built-in functionality to power a device. Simply connect the communicator to an instrument to power it.

The Emerson TREXLHPKLWS3S Trex Device Communicator withstands harsh conditions for all-day operation. With 32 GB of memory, built-in USB and Wi-Fi connectivity, the robust lithium-ion power module simultaneously powers other devices. The EDDL technology supports device interoperability.

Includes Hart application

Includes Device Communicator Plus module

Product Certifications: ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)

Wireless capability

Includes 3 Years of Standard Support

Includes Carrying Case

Microprocessor: 800 MHZ ARM Cortex A8/NXP

Memory: Internal Flash 2 GB NAND and 32 GB extended flash

RAM: 512 MB DDR3 SDRAM

Display: 5.7 in color VGA resistive touchscreen

Battery Operating Time: 8+ hours of typical use

Operating Temperature: -4 to 122°F

Enclosure Rating: IP54

Shock Tested to survive a 1-meter drop test onto concrete

Power the loop functionality

Quickly resolve field devices issues with advanced diagnostics

Configure and test valves inline

Intrinsically safe

Automatically synchronize field data with AMS Device Manager

Upgrade software and apps online

Includes Hart Application

Includes Device Communicator Plus Module

Wireless Capability

3 Years of Standard Support

Includes Carrying Case
