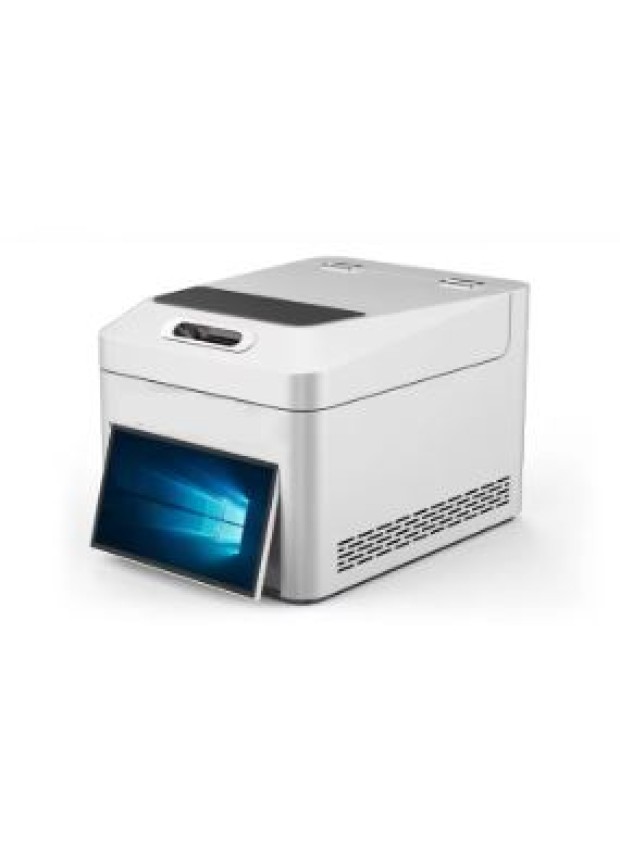

RAY6000 Mini Precious Metal X-Ray Fluorescence Analyzer
RAY6000 MiNi Precious Metal Analyzer
Performance and Configuration
Analysis Range 0.01% to 99.99%
Accuracy 0.05%(Au≥96%)
Sample Form Solid,powder
Tube Voltage 5KV ~ 50KV
High Voltage Power Supply 0 ~ 50KV
Camera HD camera
Filters Selectable customized switches
Detector Type Si-PIN Detector Made in China
Multichannel Analyzer Digital multichannel
Sample Chamber Size 310 * 230 * 90 (mm)
Test Time 5 ~ 60sec
Measuring Element 74 elements: Au Ag Cu Zn Ni Cd Sn Fe Re WRu Os InMnRhPtPb Pd Co Sb Cr Ir Ge Hg Ti Mo......(For use in the precious metalsindustry only)
Analysis Software Keyray qualitative and quantitative analysis software
External Dimensions 395 * 350 * 340 (mm)
Weight 25Kg
Instruments Environmental Requirements
Ambient Temperature 5 ° C ~ 30 ° C (Suggested that in air conditioning room)
Relative Humidity 15% ~ 85%
Power Requirements AC 220V ± 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby
